Polished Concrete Floors

CrystalFloor are by one of the greatest new proven discoveries in the flooring industry. Because of its beauty, low-maintenance, practicality and cost, concrete polishing, also known as "CrystalFloor" transforms ordinarily finished concrete into stunningly beautiful concrete works of art. This process is elaborate, detailed and very effective.

Pure mechanical, dust-free diamond grinding and polishing fine mesh Professional Diamond - SuperAbrasives.


Hardness Test over 7 MOH


Gloss Test over 30 GU

Range of Products

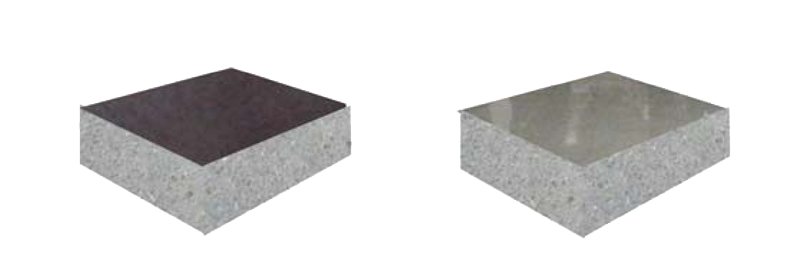

Cream Polish

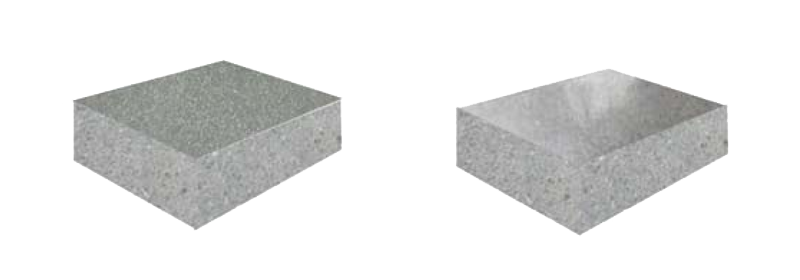

Salt & Pepper

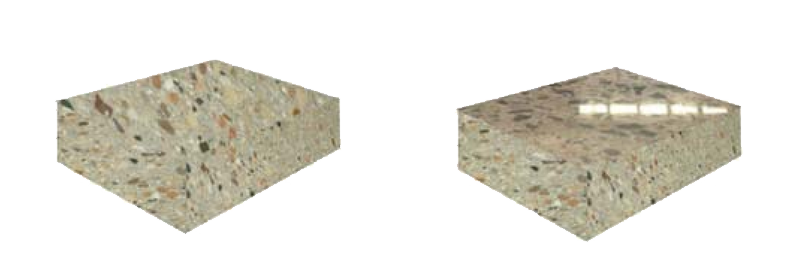

Stone expose

CrystalFloor Value
Long Life Service Time
  • No peel off damage (moisture breathable floor)
  • Stain-resistant (rubber / PU wheel mark)
  • Good abrasive resistance
  • Extream scratch resistance
  • Durability
  • No repair mark
Economic
  • Long-life time more than 10 years
  • Easy to clean
  • Low initial investment cost
  • Low maintenance cost
  • Energy saving by increase ambient light
Beauty
  • High reflectivity and gloss finish
  • Trendy looks design
  • Smooth and clean appearance
  • Non yellowing effect
Safety
  • Environment friendly
  • Odorless, dustproof
  • No harmful chemical
  • Heat resistance
Destinations
Polishing Stages
Stage 1
Metal Bond diamond remove existing epoxy coatings, surface stains and blemishers.

Stage 2
Diamond grinding pads the porous surface of concrete

Stage 3
Apply Crystal L Densifier liquid hardener to concrete, sealing and strengthening the surface

Stage 4
Resin bonded diamond are to be used to polish the concrete in stages; each stage leaves the concrete surface smoother and more refined

Stage 5
An Ultra Fine Diamond pad brings the concrete to a beautiful, durable luster.

Stage 6
Burnish with Crystal Sheen to get highest lusting effect.

Densifier / Diamond Grinding & Polishing

Crystal L
Crystal L Sodium Densifier, reduce porosity, and protect the surface by improving chemical resistance and reducing water permeability while remaining vapor permeable (breathable). The Crystal L Sodium the treated and finished concrete will provide a surface that is nontoxic, easy to maintain, and environmentally sound.
Diamond Grinding & Diamond Polishing
Diamond Grinding & Diamond Polishing are terms used to describe certain process involved in prepping, transforming and polishing concrete surfaces.

Diamond Grinding

Diamond Grinding is the most aggressive stage of preparing concrete for staining and/or polishing. We use "Metal Bond" diamond disc that grind concrete down to the desired level. Depending on the application, during this beginning stage, many if not all surface issues are addressed in this process. Glue, paint, shadows and stains are some of the problems we solve during this crucial step. When prepping concrete for polishing or stain, the process is very specific and detailed... one must understand all the factors and present limitations.

Diamond Polishing

Diamond Polishing is the term used when "Resin Bond" diamond discs hit the floor. Each level of diamond discs has its purpose. From the more aggressive grinding (metal bond) to finer polishing (resin bond), each step is a continual progression of polishing the floor to the desired finish. Depending on our type of finish (Cream, Salt & Pepper, or Stone). These type of finishes are cost effective, low-maintenance alternatives.

Tough Equipment for Tough Works

Professional Grinding and polishing machine
Grinding Equipment

Built tough for any type of floor restoration and surface preparation

Works utilizing various types of conventional abrasives and diamond

Superabrasives with standard QRS velcro-backing, bolt-on segmented

Grinding plates and terrazzo grinding plugs, drums and sectors

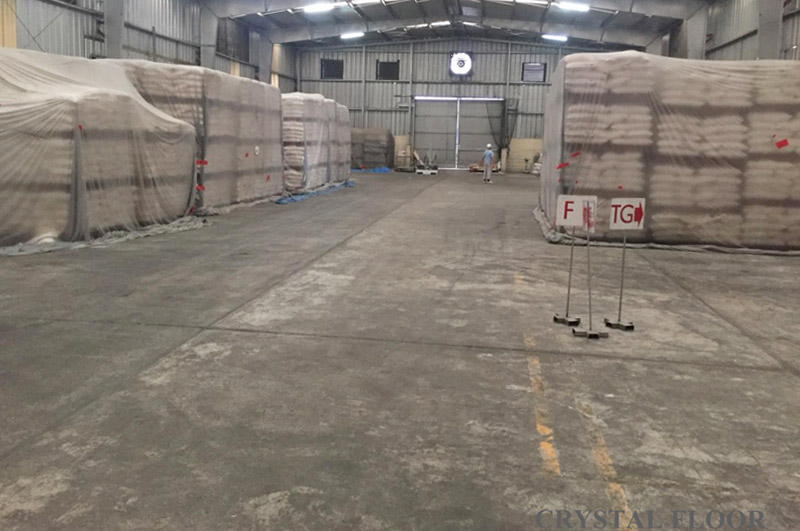

Before

Before

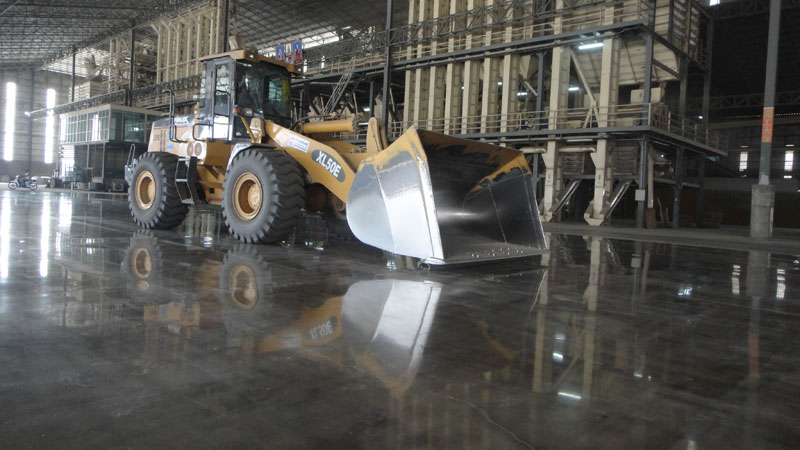

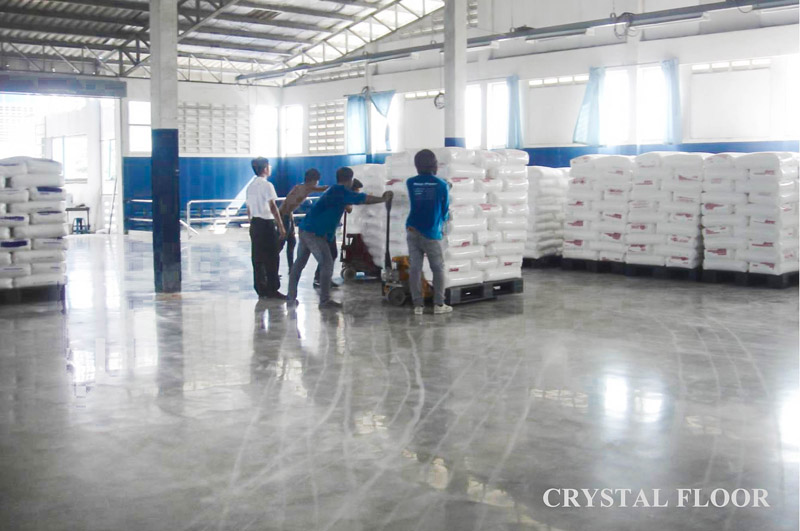

After

After

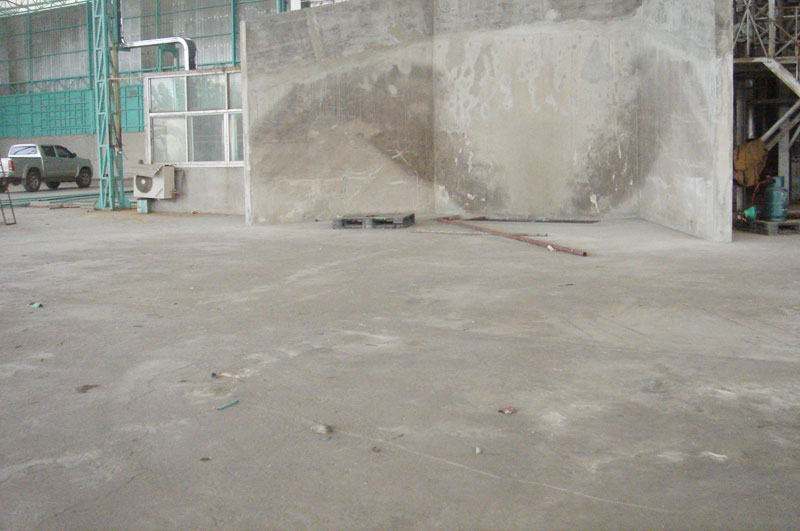

Before

Before

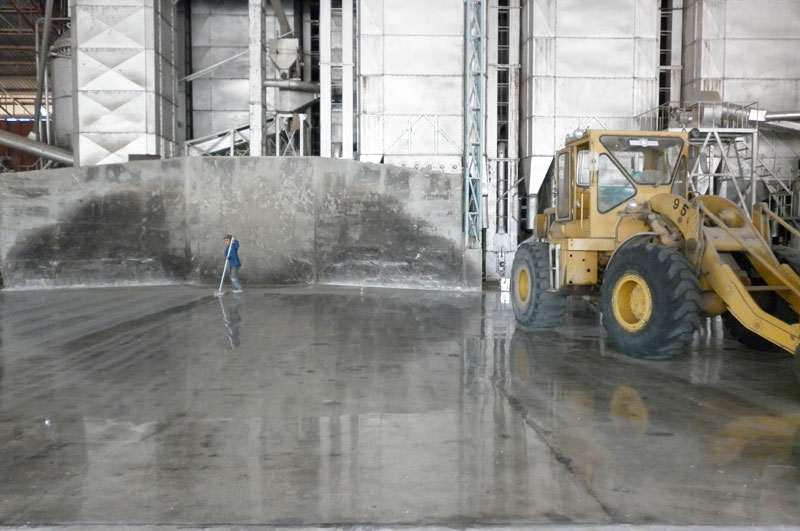

After

After

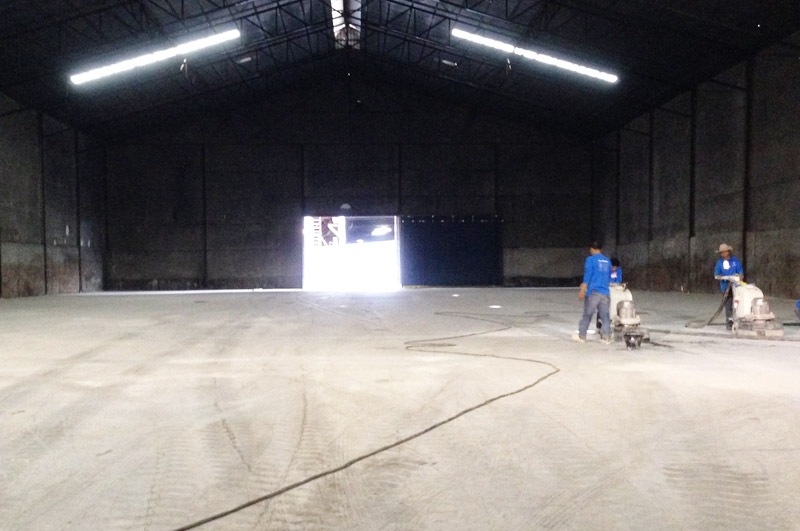

Before

Before

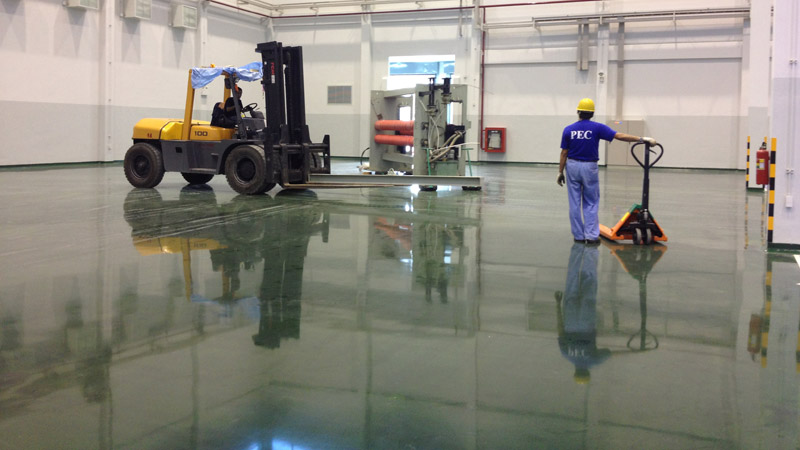

After

After

Before

Before

After

After

Before

Before

After

After
